Why Checking (and Upgrading) Your Yanmar Exhaust Elbow Could Save Your Engine
The exhaust mixing elbow on small marine diesel engines is often overlooked — yet it plays a critical role in engine reliability and longevity. For owners of Yanmar 1GM10 and 2GM20 engines, ignoring this component can lead to serious and expensive engine damage.
At Marine Service Kits, we regularly see engines suffering from problems that could have been overlooked with routine inspection or by upgrading to a better-designed exhaust elbow.
The Hidden Weakness in Standard Exhaust Elbows
Original cast exhaust elbows typically rely on a single internal weld where the inner exhaust pipe meets the mounting flange. Unfortunately, this design creates a perfect environment for crevice corrosion.
Over time, salt water surrounds the inner pipe, attacking the un-welded joint area from the inside. When the elbow is removed and cleaned, small pinholes or corrosion pits are often discovered — a clear sign that failure has already started.
Once corrosion begins, failure can progress rapidly if not caught early.

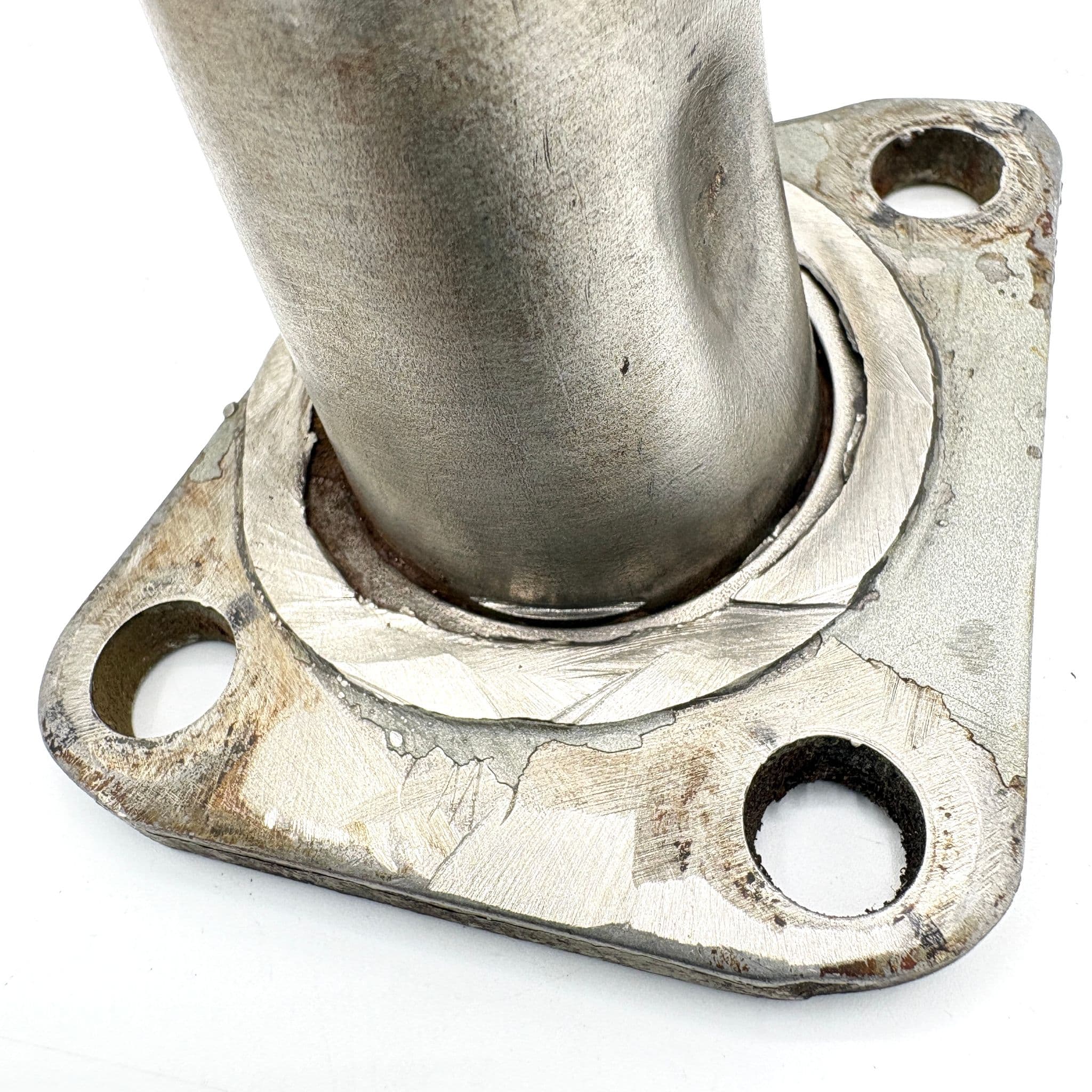

The picture below shows what the standard Yanmar Exhaust elbow looks like when opened up to reveal no inside weld.

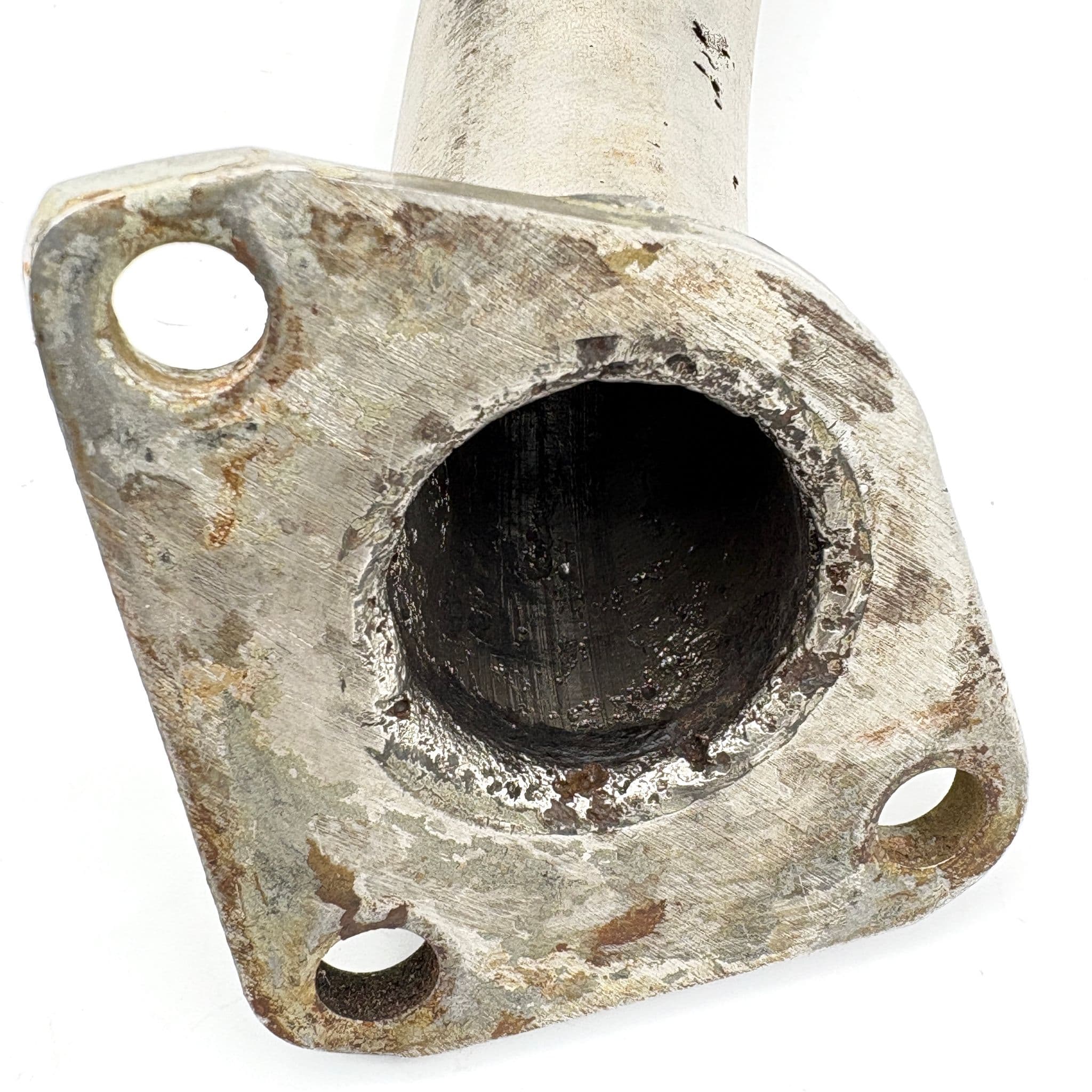

The next picture shows the premature pitting / corrosion
Why Internal Corrosion can be Hazardous
A failing exhaust mixing elbow can allow salt water to spray / leak back into the cylinder head exhaust port. This can cause:
- Corrosion pitting in the cylinder head exhaust
- Damage to valves and piston crown
- Exhaust gases leaking into the crankcase breather system
- Black oily sooty residue inside the air filter
- Difficult starting and visible exhaust fumes at the intake filter housing and system
In severe cases, corrosion can eat right through the cylinder head, creating a passage between the exhaust port and the pushrod galleries — allowing exhaust fumes to choke the engine during starting
The Risk of Hydraulic Lock
Another serious risk caused by pinholes in the exhaust elbow is hydraulic lock.
If water enters the cylinder and the engine is cranked, the piston attempts to compress water — which is impossible. The result is often:
- A bent connecting rod
- Blown head gasket
- Gas gouging on cylinder head mating faces
- Seized piston if left unchecked
These failures can catastrophic and costly, often requiring extensive works.
A Better Solution: MSK 316L Stainless Steel Exhaust Elbow
To address these known issues, the MSK Yanmar 1GM10 / 2GM20 exhaust mixing elbow is manufactured from 316L polished stainless steel and features a double-welded internal design.

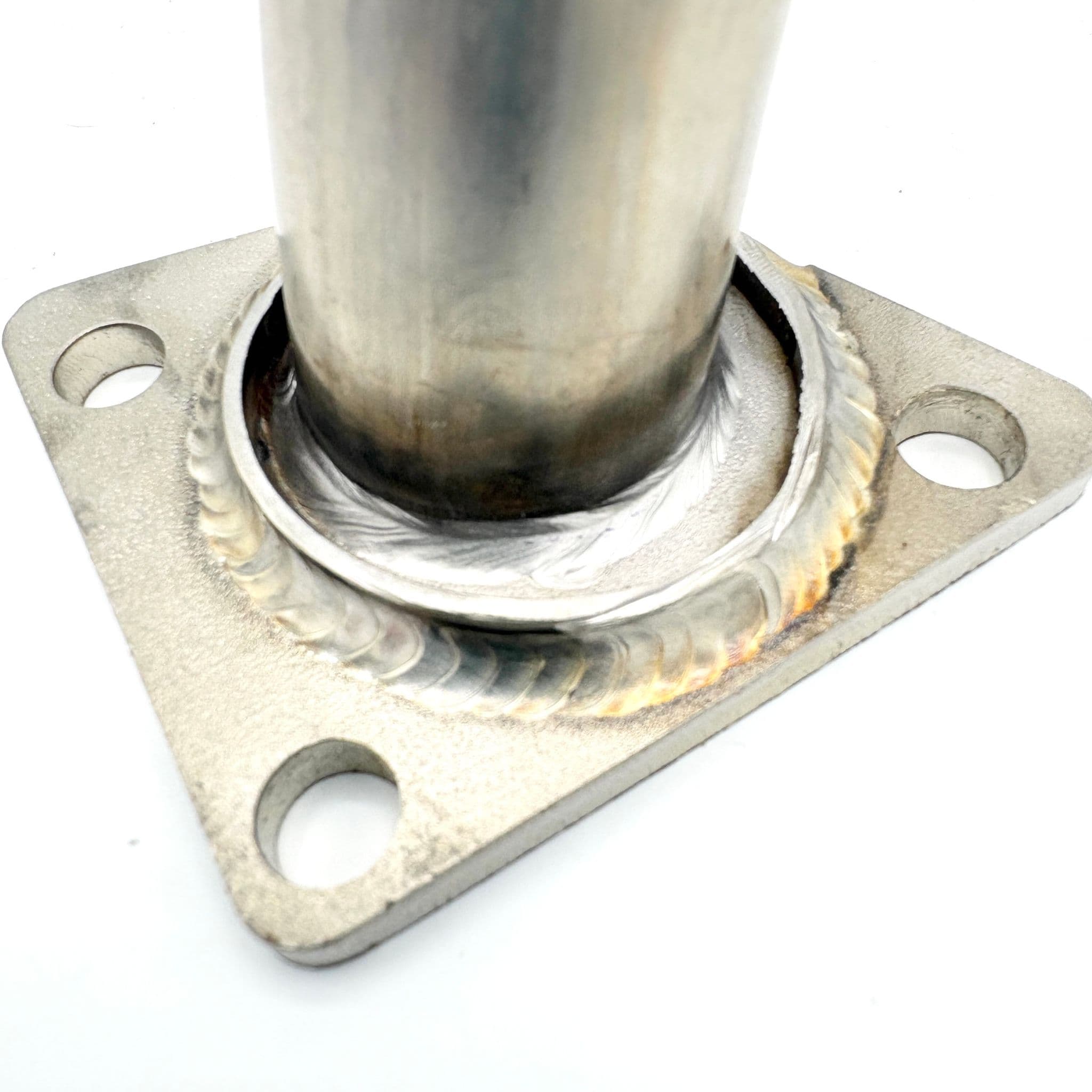

The picture below shows the internal weld for a superior exhaust elbow
The additional internal weld at the exhaust pipe bend significantly reduces the risk of crevice corrosion — the primary failure point in standard elbows.

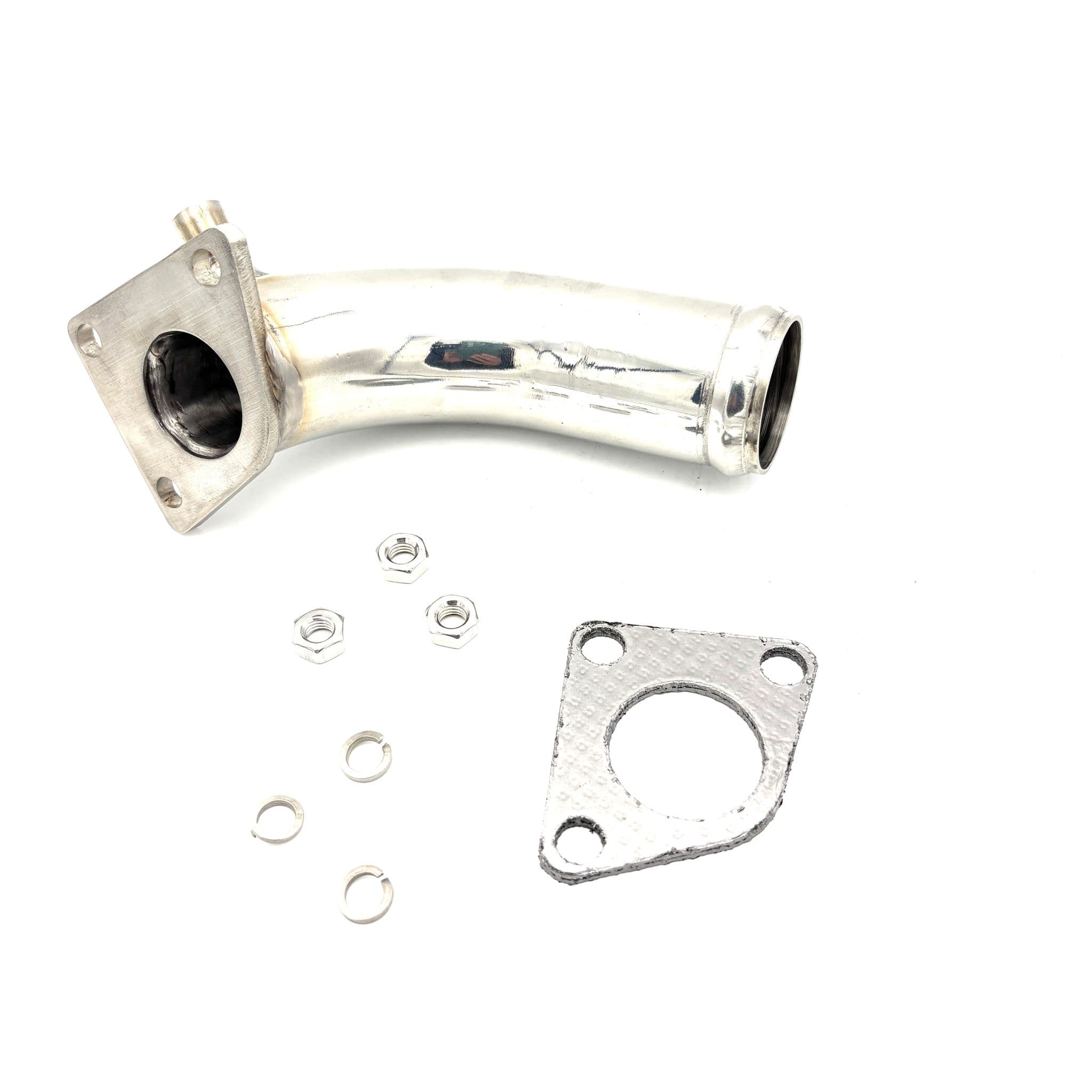

What’s Included in the Kit:
- 1 × 316L polished stainless steel exhaust mixing elbow (double welded)
- 1 × Exhaust flange gasket
- 3 × Stainless steel nuts
- 3 × Stainless steel spring washers
We believe this design offers superior durability and exceptional value compared to original standard exhaust elbows.
Inspection Advice for Boat Owners
We strongly recommend inspecting your exhaust mixing elbow at least every two years. If you see corrosion, pitting, or rust staining — replacement is advised immediately.
Important starting advice:
If your engine struggles to start, do not repeatedly crank it. This can fill the exhaust with water and risk flooding the cylinder. Close the seacock before cranking and reopen it once the engine starts.
Final Thoughts
Your exhaust mixing elbow may be small, but its impact on engine health is huge. Proactive inspection — and upgrading to a better-engineered component — can prevent breakdowns, protect your engine, and save thousands in repair costs.
If you run a Yanmar 1GM10 or 2GM20, this is one component that truly deserves your attention.
